EXP2_WEEK5_AXONOMETRIC

2 GIFS




CAPTURED IMAGES


GENERAL VIEW

The overall form of this building is a combination of a bridge and a building. A minimalism outlook was selected regarding to
CORRIDOR
PLATFORM ABOVE CORRIDOR

The corridor of the building works as the function of a bridge to connect the Square House and Tyree Energy Engineering Building.


LECTURE THEATRE

The lecture theatre follows the shape of the building aside the main corridor taking use of the ascending slope.


LIBRARY


STUDIO SPACE

The studio and the library are both underneath the main corridor, the ceiling is one-way glass which allows natural lights come into the room.

SOLAR PANELS ON THE ROOF

MOVING SOLAR PANELS

As the location of this building has a great exposure to sunlight, so that solar panels were installed on the roof and aside the below rooms to utilise solar energy. The movable solar panels can block the sunlight from the rooms when it is too strong and taking use of the energy at the same time.

GALLERY WITH MOVABLE WALLS

The movable walls can move vertically between the gallery area (above) and studio area (below). They can be used as structure to hold art pieces when there is a gallery approaching and usually they separate the studio space and hold architectural drawings.

EXP2_WEEK4_MOVE

36 TEXTURES




3 SELECTED TEXTURES





Tuesday, 16 April 2019

EXP2_WEEK3_PLAN

SECTION

 Section from Vitra Fire Station - Zaha Hadid


DRAFT MODEL

View 1

View 2


Monday, 8 April 2019

EXP2_WEEK2_THE BRIDGE

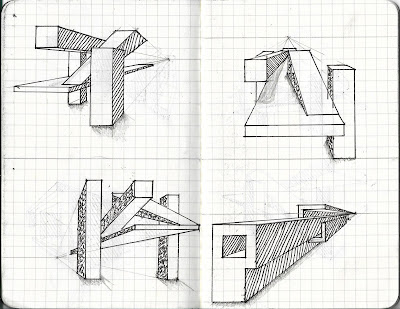

DRAWINGS OF TWO POINTS PERSPECTIVE




TWO MOVING ELEMENTS


Moving Element 1


Moving Element 2
